Description

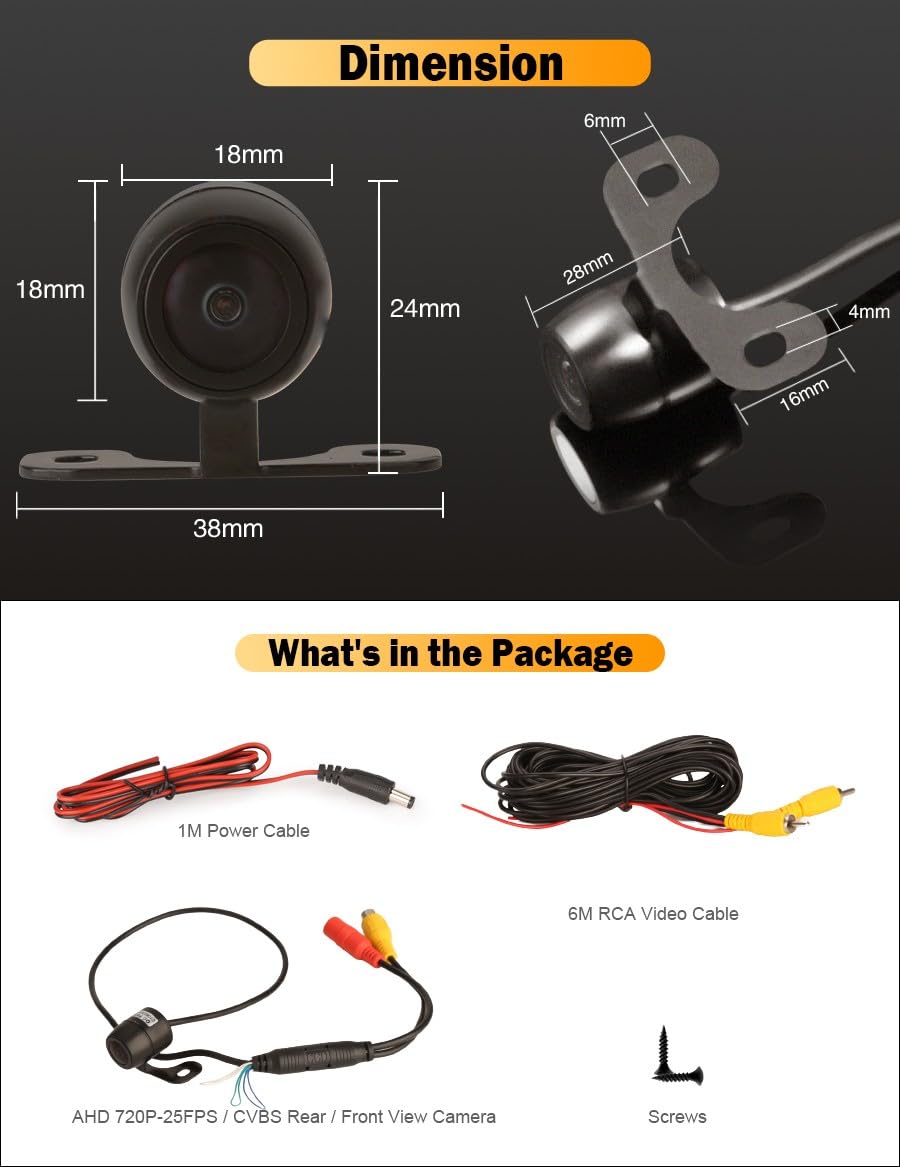

Specifications: - Type: Car Rear / Front View Camera - Sensor: SC1345 720P 1/4.5 CMOS - Effective Pixels: 1280(H) x 720(V) pixels - TV System: AHD/CVBS(NTSC / PAL) switch - Video Output: AHD 720P - Frame Rate: AHD 720P 25fps - Noise Reduction: 3DNR / 2DNR - SNR: 38dB - Shutter: AUTO - Sensitivity: 4800mV / Lux.s - CRA Angle: 15° - Lens Angle: 150 degree Horizontal, 170 Degree Vertical - Minimum Illumination: 0.01Lux (F1. 2, AGC ON), OLUX with IR - Power Supply: DC 3.3V-5V(±20%) - Operating Temperature: -30℃~+85℃ - Operating Temperature: RH90% Max - Waterproof: IP68 - RCA Video Cable: 6M - Lens Size: 18*18mm - Shipping Weight: 150g Parcel Content: - 1 * AHD 720P-25FPS / CVBS Rear / Front View Camera - 1 * 1M Power Cable - 1 * 6M RCA Video Cable - 2 * Screws
Features
1. 2-in 1 design This is an AHD 720P-25FPS rear/front view camera with a distance scale line. You can use it as rear view backup camera or front / side camera. Mini Design, only 18mm body size. Fit for any Car model, easy to install.
2. Wide Viewing Angle Real 150° horizontal /170° wide angle, projects a wide range of scenery, effectively eliminates driving blind spots as much as possible, prevent collisions with obstacles and provide safe driving.

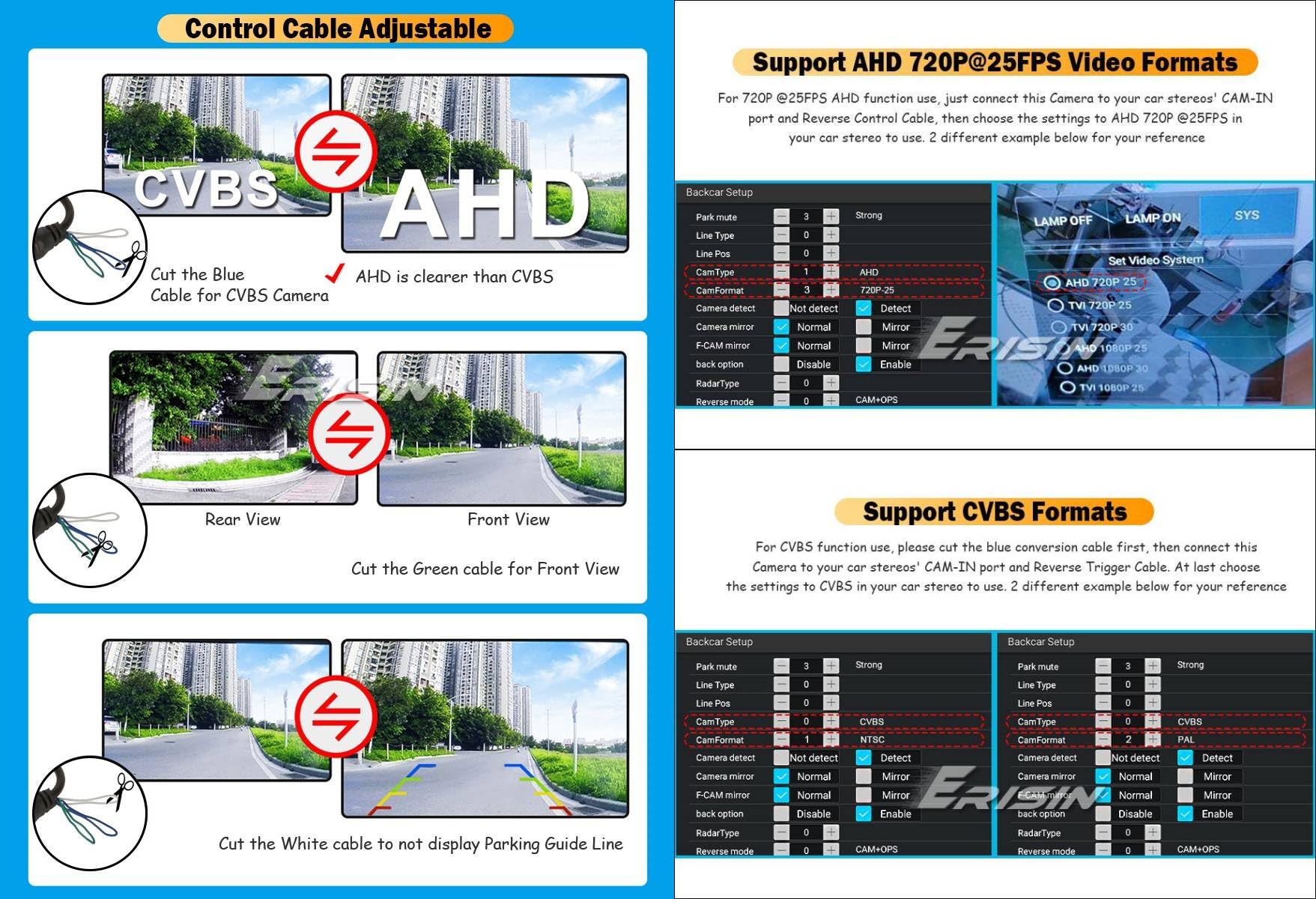

3. AHD / CVBS Switchable Support AHD 720P-25FPS / CVBS Video Formats. With AHD mode, higher image resolution, better image reproduction. To use it as a CVBS Camera, you would need to cut the blue looped wire.
4. IP68 Waterproof This car rear camera has undergone rigorous environmental testing before shipment. The waterproof rating is IP68 international standard certified, no worry about the dust or rain getting into your camera.
5. Car Reverse Camera with Control Wires, easy to choose different mode - Green Wire control front or rear view mode (cut the green wire to switch to front view). - Blue Wire switch from AHD mode to CVBS mode by cutting the blue cable, or retain it for AHD function. - White Wire control the parking line ON / OFF.
