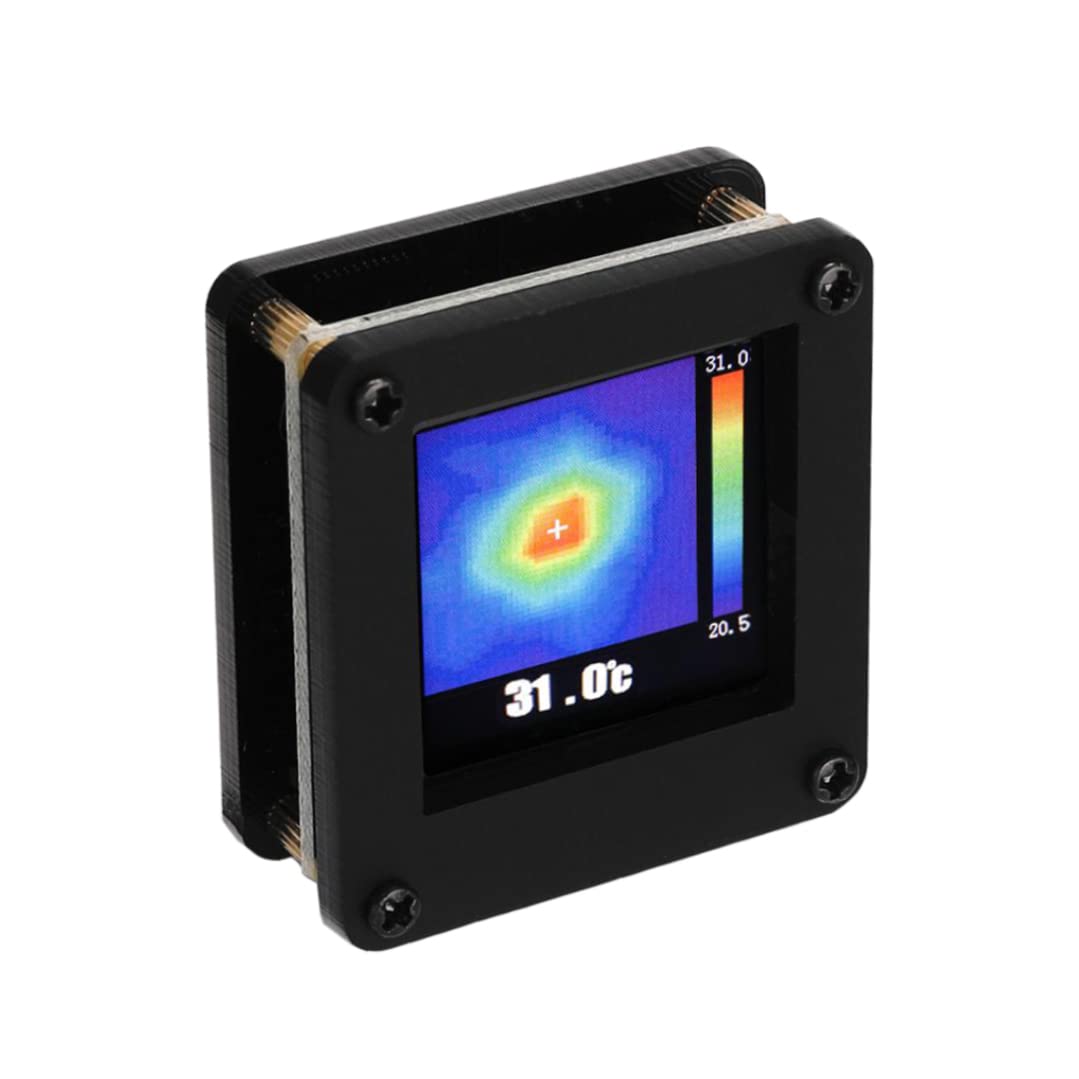

SouiWuzi Thermal Imaging Camera - AMG8833 IR Infrared Thermograph with Temperature Measurement for Home Inspection, Electrical Maintenance & HVAC Diagnostics

Description This thermal camera can be used for professional work and home use to identify cold or hot leaks, insulation problems and diagnose problems in AC or HVAC units. This is the perfect thermal camera for home inspection, HVAC check, plumbing and more. This thermal imager module can be applied to check electronic products. Such as construction, HAVC, air conditioning maintencance, DIY, type temperature measuring, machinery equipment test, etc. Feature Thermal imager -Color:Black. -Material:PCB. -Size:38x36x17mm / 1.5x1.4x0.7inch. -Item weight: 17g / 0.6ounce. -Temperature accuracy: -High performance type high gain: typical ±2.5℃ ±4.5℉. -High performance type low gain: typical ±3.0℃ ±5.4℉. -Human detection distance: 7m or less (reference value) 22.966 ft. -Typ. 0.05℃ 32.900℉ 1Hz. -Typ. 0.16℃ 32.288℉ 10Hz. -Viewing angle: typical 60. -Optical axis gap: within typical ±5.6. -Current consumption: -Typical 4.5mA (normal mode). -Typical 0.2mA (sleep mode). -Typical 0.8mA (stand-by mode). -Setup time: -Typical 50ms (time to enable communication after setup). -Typical 15s (time to stabilize output after setup). -Number of pixel: 64 (vertical 8 * horizontal 8 matrix). -External interface: 1²C (fast mode). -Frame rate: typical 10 frames/sec or 1 frame/sec. -Operating mode: normal, sleep, stand-by (10 sec or 60 sec intermittence). -Output mode: temperature output. -Calculate mode: no moving average or twice moving average. -Temperature output resolution: 0.25℃ / 32.45℉. -Number of sensor address: 2 (1²C slave address). -Thermistor output temperature range: -20℃~80℃ (-4℉~176℉). -Thermistor output resolution: 0.0625℃ / 32.1125℉. Package Including 1 * Thermal Imager
