Universal Car Backup Camera with 12-LED Night Vision & 170° Wide Angle - Waterproof Rear View Reverse Camera for Cars, Trucks, SUVs, RVs, Vans, Trailers - Perfect for Safe Parking & Night Driving

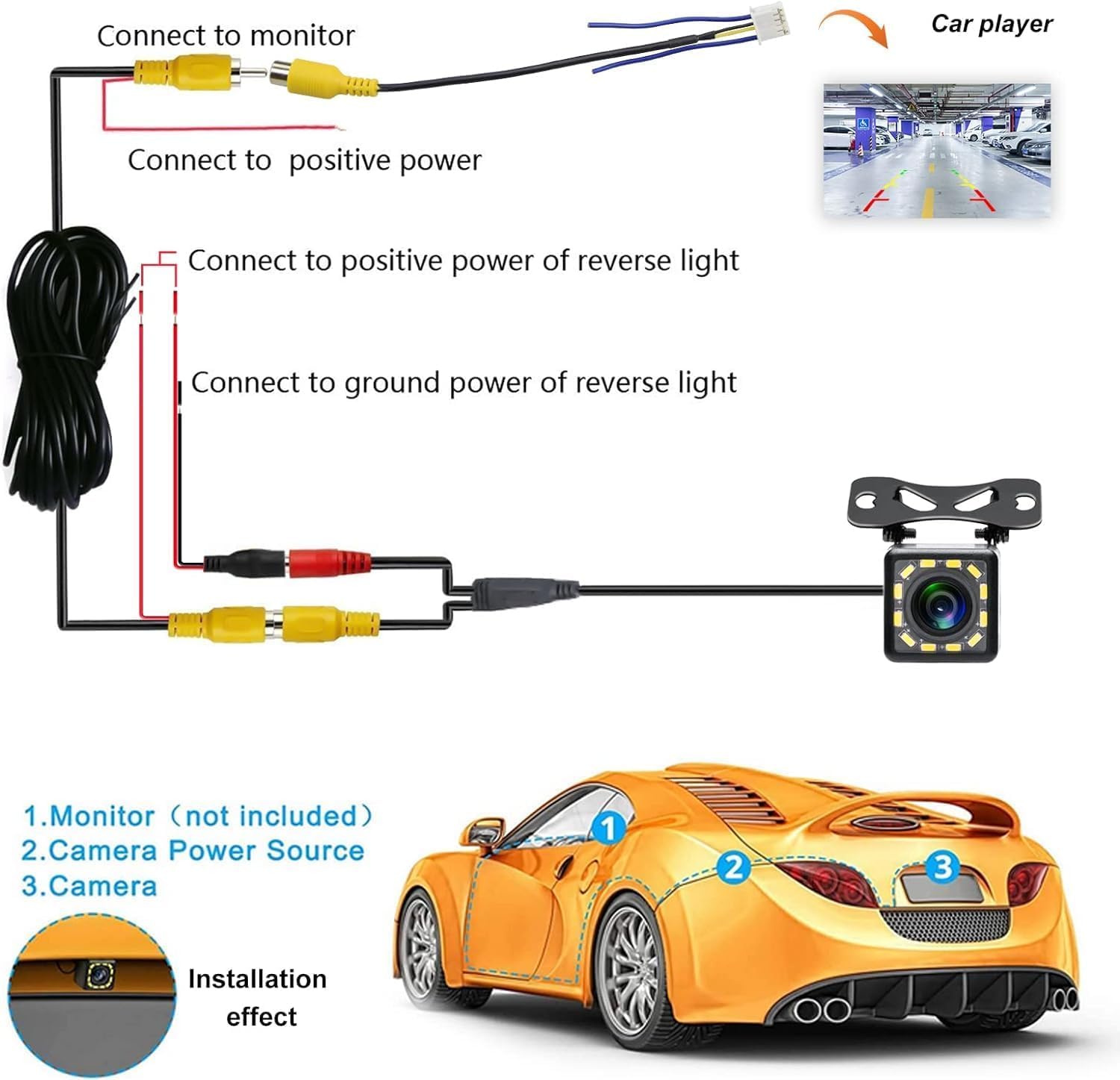

Back Up Camera for Cars and Trucks Attentions This rear camera can not use for encrypted monitors. Any questions about wiring, installation or package of the rear camera, please find the seller center. Features - Wide compatibility for car stereos, dash cams or monitors that have AV connector / RCA ports- Accurate parking guide lines ensure your driving safety- 12-LED night vision provides clear rear image- Waterproof camera, no worry about water imerging on raining days- Ultra 150˚wide viewing angle can provide car full rear pictures- Easy hook up behind you car license plate or bumper Bring Clear Images Both in Day and at Night Package Content 1 x Rear View Camera1 x 6M Video Cable1 x Power Cable Note The package does not comes with installation manual, please find us and we will send you installation video for reference. Specifications Image sensors: 1/4" color SensorTV System: NTSC default & PAL requestMinimum illumination. <0.5AGC: AutoBLC: AutoWhite Balance: AutoVideo Color: ColorfulWaterproof Class: Ip 66Effective Pixels : 580X540Resolution : 420TV linesVideo Output: 1.0Vp-p,75Electronic Shutter: 1/60(NTSC)-1/10000SS/N ratio: Better Than 48dbLens Angle: 170°Operation Temperature: -20°C+80°C RH95%Storage Temperature: -30°C+80°CWorking Power (DCV): 12VCurrent consumption: 90mA Max Reverse Camera for Car / Truck / RV Here's the complete steps of camera wiring: 1. Camera power cable: red and black. --- Red connection to reverse the positive light, black to reverse the negative light. 2. Camera RCA cable: yellow port. ---- Insert the RCA cable of the camera on the radio rear port "CAMIN"/"RCAM" 3. Trigger Cable 3.1 the trigger cable on car radio: the cable named "reverse / parking sensor control / back in", according to the wiring diagram at the bottom of the machine. There are two short red wires next to the camera's RCA port. 3.2 near the radio: the red wire 1 -- connects to 3.1 cable 3.3 near the camera: the red wire 2 -- connects to car's rear light positive. When you pull the rear gear, the device will automatically display the rear view image.
