5 Inch CCTV Tester for Analog Cameras - HDMI & VGA Input Monitor - Professional Camera Debugging Tool for Security System Installation & Maintenance (Perfect for Surveillance Technicians & DIY Home Security Setup)
Free shipping on all orders over $50
7-15 days international
10 people viewing this product right now!
30-day free returns
Secure checkout
31479407
Description
5-inch TFT LCD Screen 6 in 1 CCTV Tester PAL/NTSC ,Hybrid camera tester is able to test and debug coaxial 720P / 960P / 1080P /3MP/4MP/5MP/8MP AHD camera & CVI camera & TVI camera and traditional CVBS analog camera （IP &SDI camerasare not supported） HDMI input, support 1024x768 &1280x720 & 1280x1024 & 1440x900 & 1920x1080 resolution . VGA input:support 1024*768 and 1280*1024 and 1440x900 and 1920x1080 resolutions . PTZ CONTROL:Support RS485,Compatible with multiple PTZ protocols (PELCO-D / PELCO-P ); baud rate: 1200,2400, 4800, 9600, 14400 (optional), zooms in/out the lens, adjusts aperture, PTZ continuing rotate test. UTP Cable Test: By UTP CABLE TEST port on the meter, you can test the connection of network cable.LED emergency lighting，DC 12V/1A output power, Audio test,USB 5V output .Built-in 18650 2600mA battery * 2,Charging 3-4 hour, working time lasts 11 hours. › See more product details
Features
5-inch TFT LCD Screen 6 in 1 CCTV Tester PAL/NTSC ,Hybrid camera tester is able to test and debug coaxial 720P / 960P / 1080P /3MP/4MP/5MP/8MP AHD camera & CVI camera & TVI camera and traditional CVBS analog camera （IP &SDI camerasare not supported）
HDMI input, support 1024x768 &1280x720 & 1280x1024 & 1440x900 & 1920x1080 resolution .
VGA inputsupport 1024*768 and 1280*1024 and 1440x900 and 1920x1080 resolutions .
PTZ CONTROLSupport RS485,Compatible with multiple PTZ protocols (PELCO-D / PELCO-P ); baud rate 1200,2400, 4800, 9600, 14400 (optional), zooms in/out the lens, adjusts aperture, PTZ continuing rotate test.

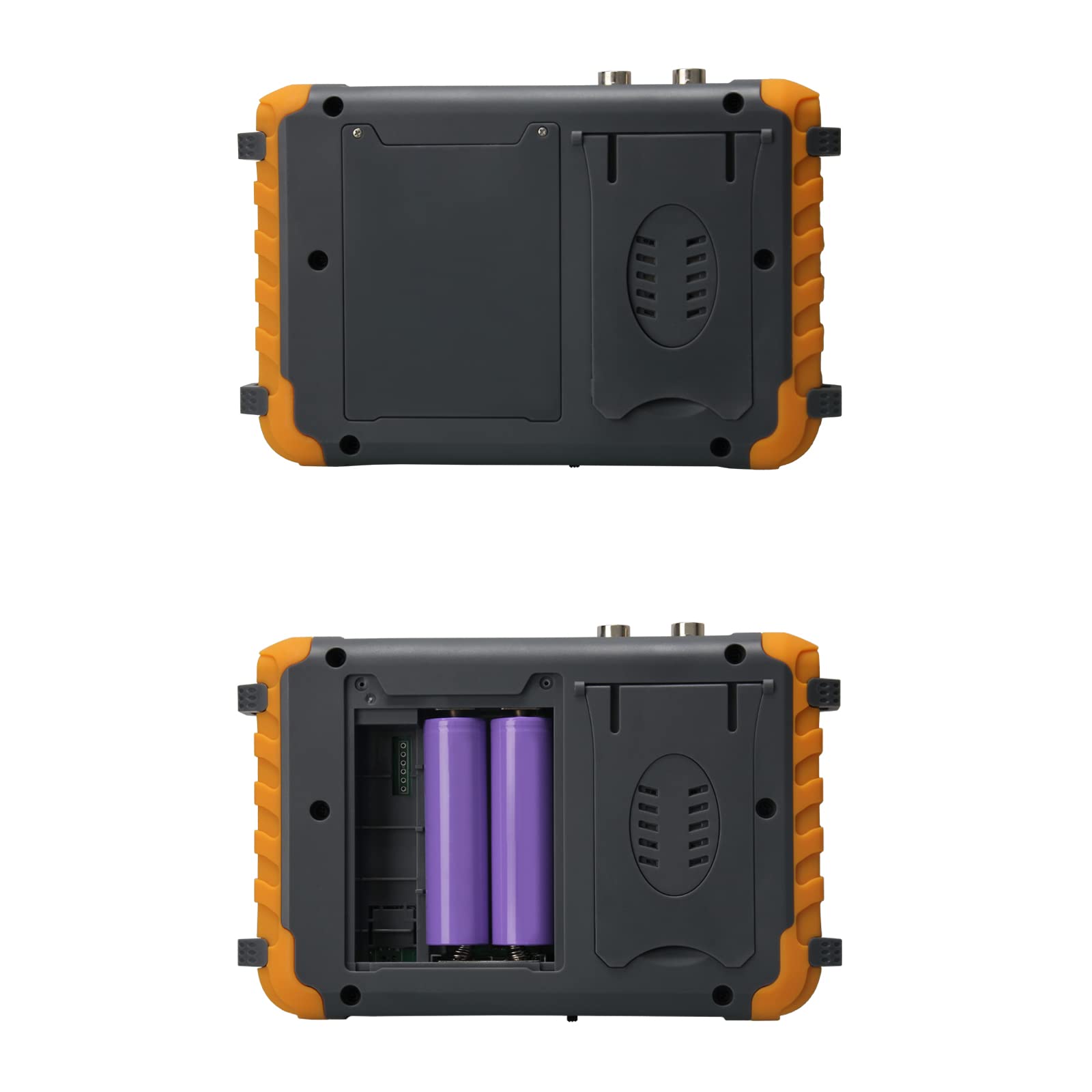

UTP Cable Test By UTP CABLE TEST port on the meter, you can test the connection of network cable.LED emergency lighting，DC 12V/1A output power, Audio test,USB 5V output .Built-in 18650 2600mA battery * 2,Charging 3-4 hour, working time lasts 11 hours.
